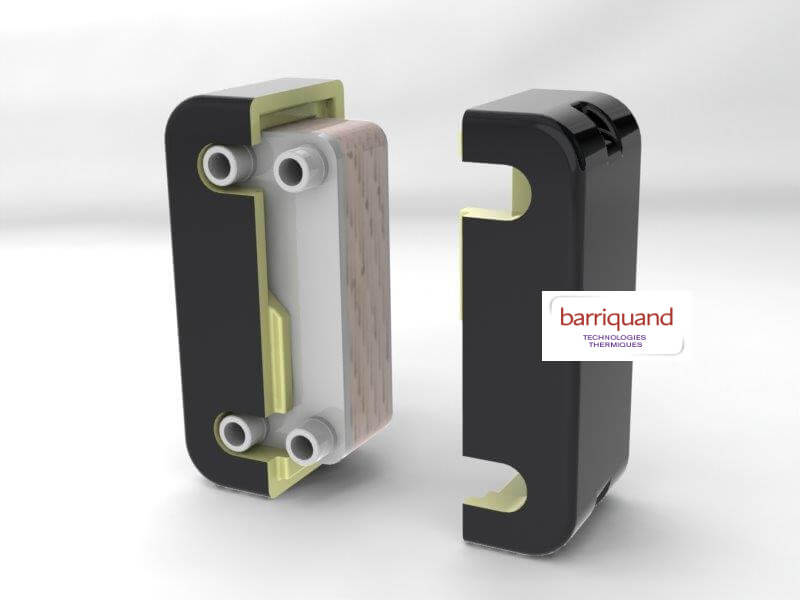

Brazed plate heat exchanger

Compact and ultra-efficient, brazed plate heat exchangers are used in HVAC and environmental engineering for heating, cooling, network separation applications ...


    Brazed plate heat exchanger


    • Very low footprint
    • Robust construction, standard exchange
    • Advantageous cost / life cycle: no maintenance
    • High thermal efficiency
    • Special connections upon request

      Brazed plate heat exchanger

      The brazed plate heat exchanger is used on DHW applications, refrigeration (evaporation/condensation), substations and small and medium-sized district heating installations.

      Our brazed heat exchangers range from 0.2 m² to 60 m²

      • AISI 316 Material thickness 0.4 mm
      • The plates are assembled with brazing copper
      • Operating pressure up to 30 bar
      • Connections : DN 20 to DN 150
      • Male threaded connection or flange
      • Cannot be dismantled
      • Counterflow heat exchanger (in general)
